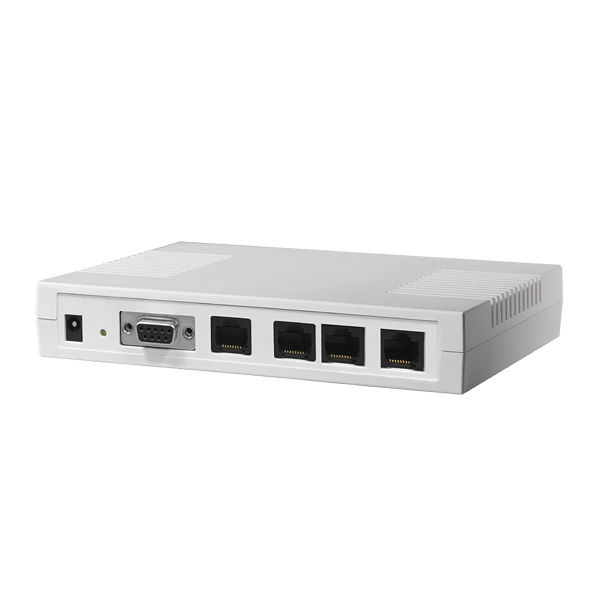

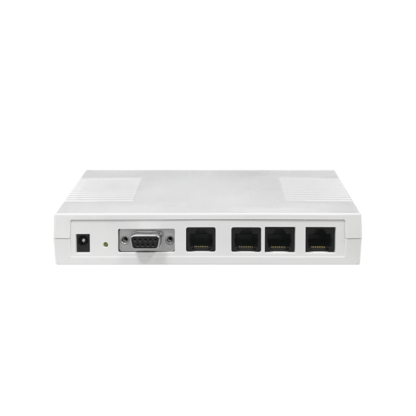

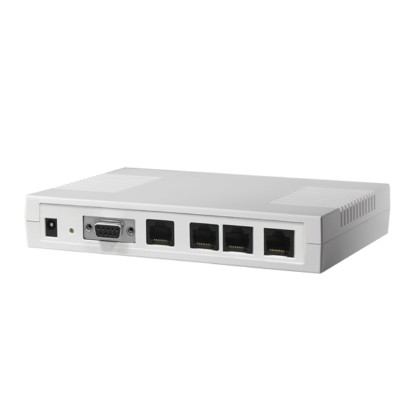

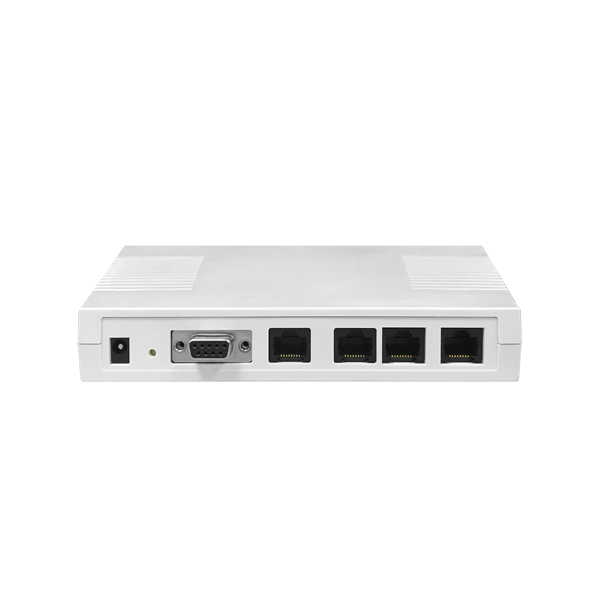

HK-1110

Desktop Network System Based on MT7511 (MIPS) Dual-Core SoC

  • 1x MediaTek MIPS MT7511 SoC Processor (750MHz, 2 Cores)
  • 128MB DDR2 RAM
  • 3x GbE RJ45 Ethernet Ports
  • 1x DB-9 Console

Build-in 7 configurable priority queues for traffic control

– Tuning bandwidth allocation for each bands
– Borrowing bandwidth from unused bands
– Shaping IPv4 unicast and multicast traffic

Allow customized QoS policies via Web-based GUI

– Customizing classification rules by specified IP, port, protocol, FQDN (full qualified domain name) for each individual session
– Changing bandwidth allocation for each priority bands

Provide bump-in-the-wire Qos

– Zero-touch operation with default QoS policy
– Internet bandwidth auto-detection

Support failover bypass mode

– When system fails to work, one downlink and one uplink port will be connected directly to keep network access.

Platform
Processor1 x MediaTek MIPS MT7511
Flash Memory128MB (NAND)
System Memory1 x DDR2 RAM
Ethernet Port3 x RJ45 GbE Port(s) on board
Power Supply20W Adapter
Dimension (WxDxH)170mm x 114mm x 28mm (6.8" x 4.56" x 1.12")
Weight (Kg)0.29 Kg
I/O
Management Console1 x DB-9 Console Port
1 x RJ45 Management Port
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 104°F)
Storage EnvironmentTemperature: -5 - 50°C (23 - 122°F)
CertificationCE / FCC / RoHS
Models Core/Threads Frequency (Max) Cache TDP
MediaTek MT75112C750MHz

Order Inquiry

    HK-1110

    Desktop, 1 x MediaTek MIPS (MT7511), 1 x 128MB DDR2 RAM, 3 x RJ45 GbE, 20W Adapter

    HK-1111

    Desktop, 1 x MediaTek MIPS (MT7511), 1 x 128MB DDR2 RAM, 2 x RJ45 GbE, 20W Adapter
